| GES-P02 | |

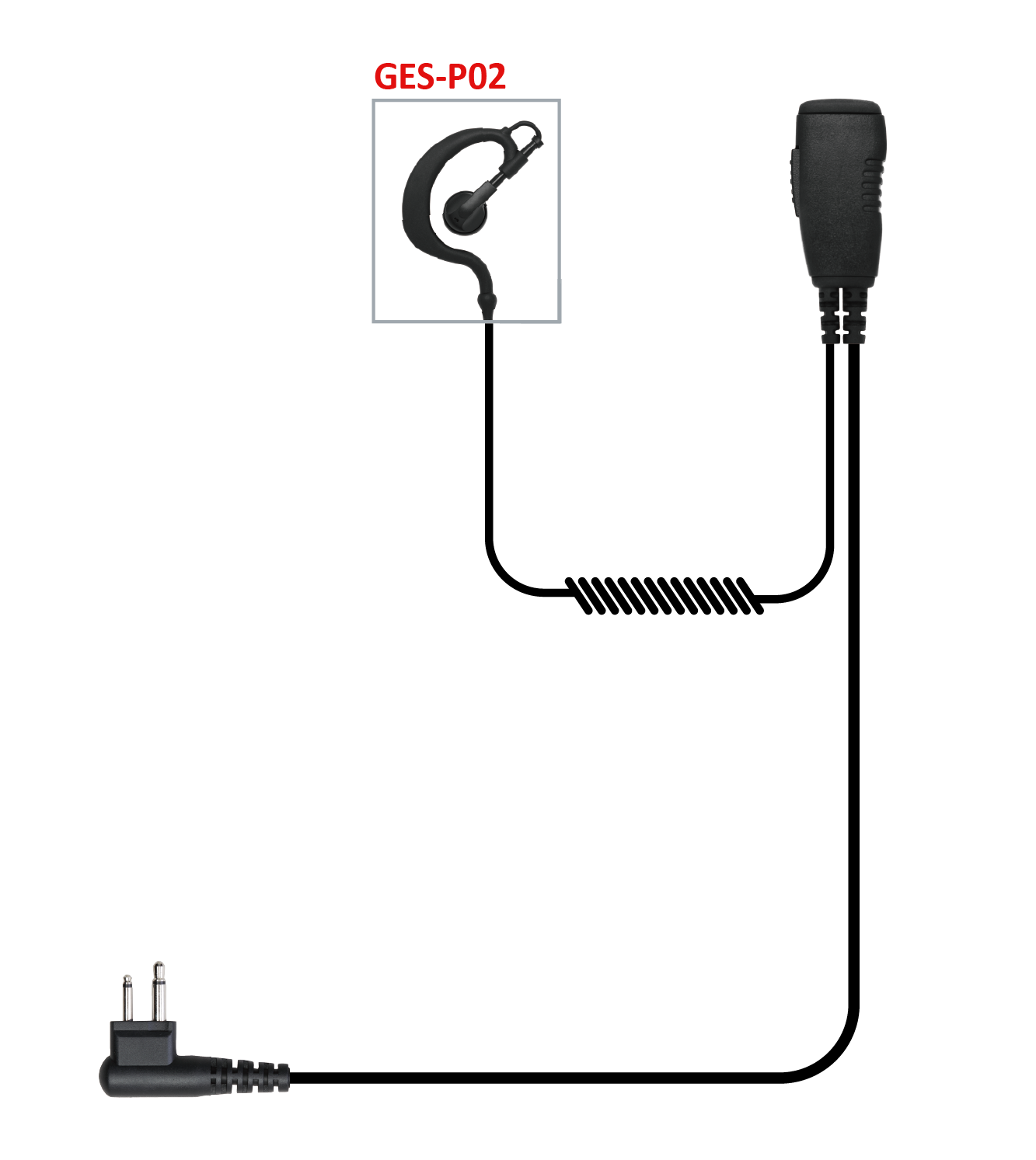

GES-P02 带组合麦克风/PTT耳挂式旋转耳机 / Earbud earphone with lapel PTT/MIC and various cable configurations |
| 1wire (wire exit bottom of PTT) |
1wire (wire exit inline of PTT) | |
2wire (dual straight cable) | |
2wire (dual coil cable) | |
喇叭参数 / SPECIFICATION
项目 | 数据 | |
尺寸 | Φ14.8×4.4 mm | |
阻抗 | 32Ω ± 15% | （At1.0 KHZ / 1.0V） |
额定输入功率 | 0.3W | |
最大输入功率 | 0.5W | |
灵敏度 | 117dB ± 3dB | |
频率 | 0Hz~10KHZ | Average SPL-10dB |
附加配件 | ||||
GEP-TIP-B |
GEP-CLIP-LP-25 |
GEP-CLIP-LP-A - | ||
